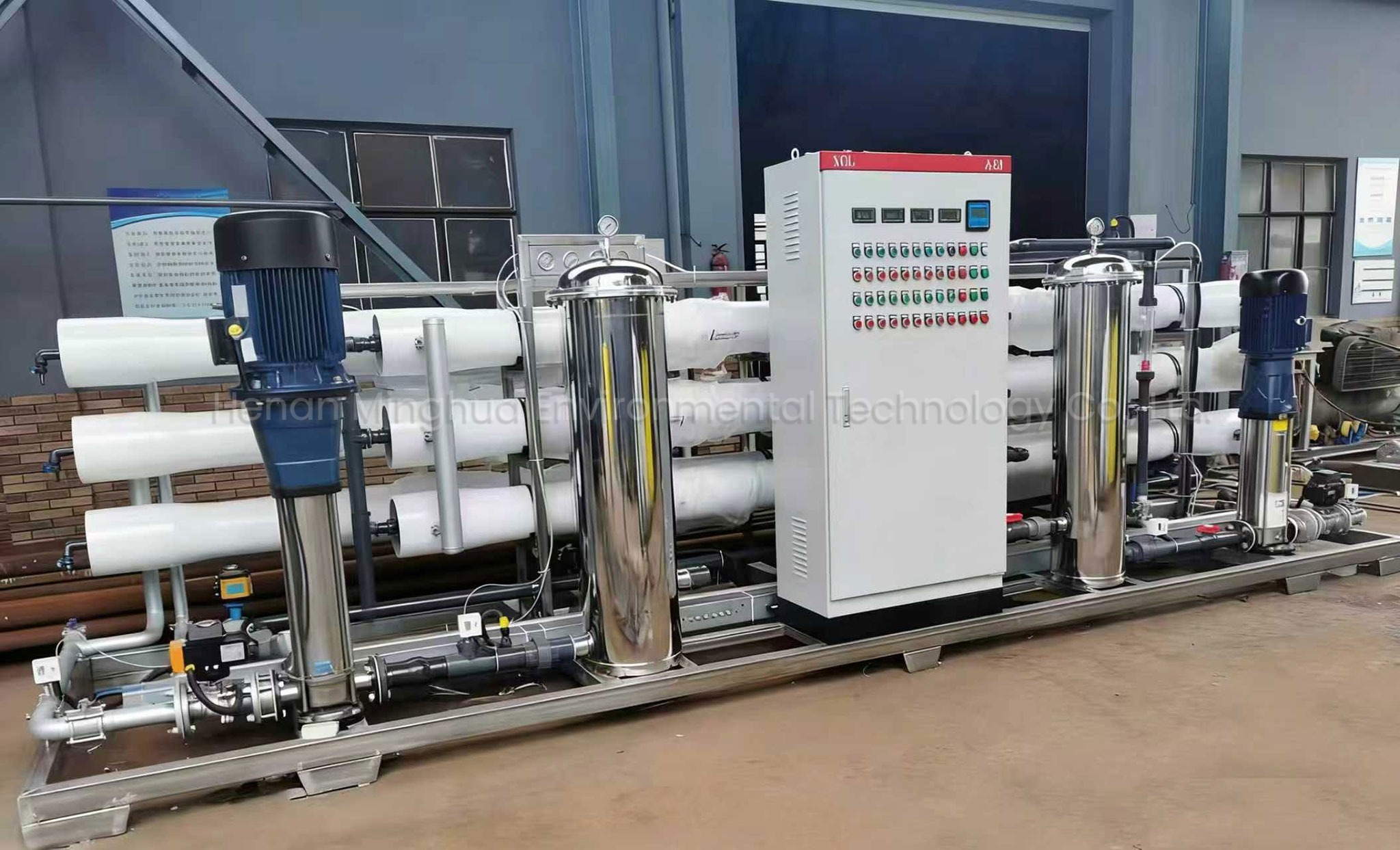

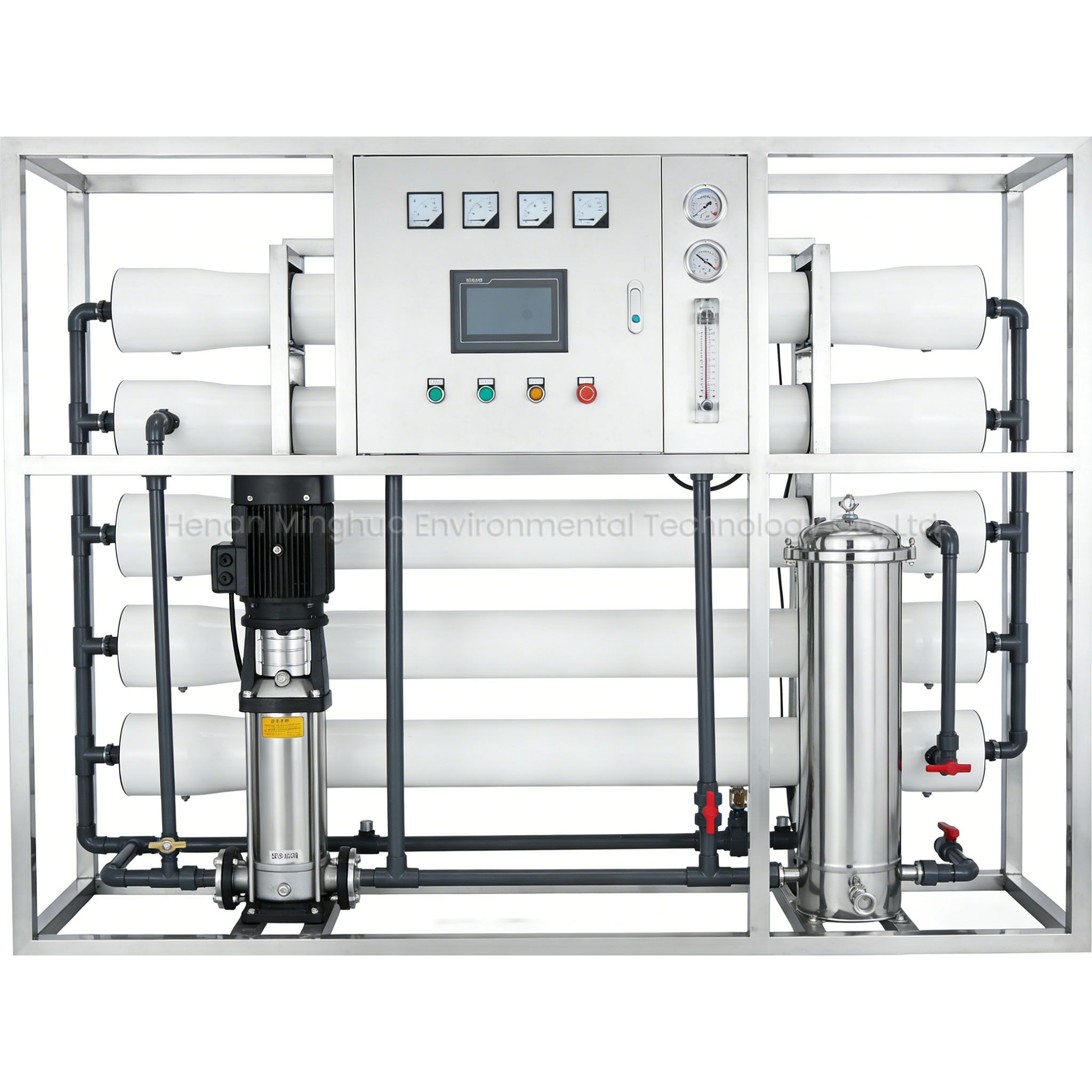

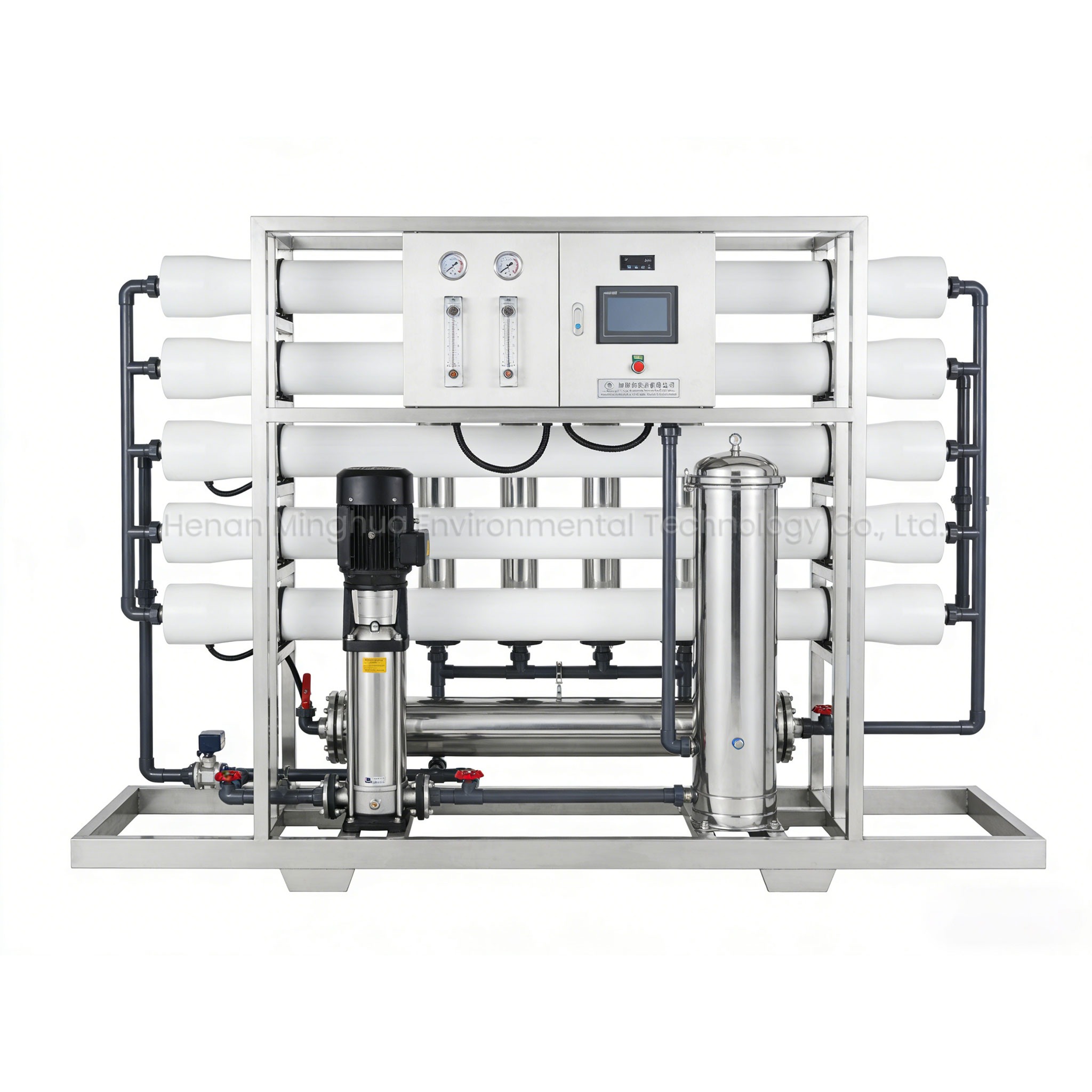

Reverse Osmosis (RO System)

Description: The primary function is to intercept various anions and cations in water; it is used for pure water production and the concentration of various salt-containing and heavy metal liquids
Key Advantages: Compact Design, Fully automated, low energy consumption, easy management.
Applications: Industrial pure water production, industrial wastewater reclamation and reuse, seawater desalination
Efficiency: 2-40 m³/h, Influent COD ≤ 100 mg/L, Conductivity ≤ 10000 µS/cm, Effluent Conductivity ≤ 30µS/cm
Inquire Now
  • Details
  • Functional Logic
  • Applications & Tailored Solutions
  • Customized Service
  • Core Advantages
ProjectContents
Model / SpecificationsMHFST-X X = Processing volume m³/h
Treatment Capacity2-40m³/h
Influent Water QualityInfluent COD ≤ 100 mg/L Conductivity ≤ 10,000 µS/cm
Effluent Water QualityEffluent Conductivity ≤ 30 µS/cm
Material OptionsRO Membrane - Aromatic Polyamide
Overall DimensionsL: 15000-8000 mm
W: 1000-1500 mm
H: 1500-2000 mm
Core Treatment TechnologyFiltration Method
Core Components & ConfigurationsRO membrane, High-pressure pump, Flow meter, Conductivity meter, Control cabinet, Backwash system
Operating Power4KW-50KW
Installation MethodAbove-ground
Operation ModeFully Auto PLC, Manual, Remote Monitoring
Backwash Cycle30-minute / 10-hour interval



Copy linkWeChatFacebookLinkedInWhatsAppPinterest
Project Contents
Functional Logic Core Concept — From "Osmosis" to "Reverse Osmosis" Natural Osmosis: Water molecules naturally flow from the low-concentration side (fresh water) to the high-concentration side (salt water). Reverse Osmosis (RO): By applying pressure to the high-concentration side, water molecules are forced to flow in the reverse direction. · Rejected Impurities: Effectively blocks salts, impurities, heavy metals, bacteria, and viruses. · Permeate: Only pure water molecules pass through the membrane. Pre-treatment: · Quartz Sand Filter: Removes sediment and suspended solids. · Activated Carbon Filter: Removes residual chlorine, odors, and organics. Security Filter: Final fine filtration to protect membranes. RO Desalination: · High-Pressure Pump: Overcomes osmotic pressure. · RO Membrane: Filters at 10-5μm (0.00001μm) precision. Post-treatment (Optional): · UV Sterilizer: Further disinfection for water safety.
Key Advantages Extremely high & stable effluent water quality



Project Contents
Electronics / Electroplating / Industrial Manufacturing Electroplating Industry: Pure water for electroplating and cleaning processes
Electronics Plants: Circuit board cleaning and ultra-pure water for electronic components
Hardware Processing: Product cleaning and cooling water
Coating & Electrophoresis: Prevents watermarks and spots; improves surface quality
Food & Beverage Industry Purified water and mineral water bottling plants
For beverages, fruit juices, and milk tea production
Wineries, soy sauce, vinegar, and other seasoning production
Food Processing: Cleaning and ingredient water for meat and soy products
Pharmaceutical and Hospital Use Hospitals: Pure water machines, laboratory testing, and dialysis water
Pharmaceutical Plants: Pre-treatment for purified water and Water for Injection (WFI)
Personal Care: Production water for health supplements and cosmetics
Boilers / Air Conditioning / HVAC Softened water + RO desalination to prevent scaling
Cooling circulation makeup water
Water supply for steam generators and heat exchange equipment.
Civil & Commercial Water Purification Community-wide direct drinking water and building-specific classified water supply
For schools, hotels, and dormitories
Direct drinking water for office buildings and factory employees
Wastewater Treatment & Reclaimed Water Reuse Advanced treatment following integrated wastewater processing
Reclaimed water reuse for industrial zones
For coal washing, printing & dyeing, and chemical wastewater
Front-end desalination for Zero Liquid Discharge (ZLD) projects
RO is the core equipment for transforming wastewater into clean water for reuse
Seawater Desalination Coastal Regions: Seawater desalination



Project Contents
Treatment Capacity Customizable equipment sizes tailored to specific processing volume
Membrane Type Customizable options: Standard/Anti-fouling/Seawater Desalination
Remote Monitoring Optional remote monitoring system integration
Disinfection Module Customizable disinfection modules based on effluent discharge destinations



Project Contents
Performance · Guaranteed Compliance: Delivers consistently stable effluent that meets all discharge standards
· High Throughput: Optimized system design ensures superior treatment efficiency and rapid processing
· Operational Resilience: Strong resistance to shock loads (both volume and concentration), ensuring stable operation even under fluctuating influent conditions
Operation Fully automated PLC control with unmanned operation
Customizable HMI touchscreen for intuitive and user-friendly operation
Maintenance · Modular core components for easy disassembly, coupled with simplified backwash procedures
· Extended service cycles significantly reduce manual maintenance and operational costs
Materials & Durability RO Membrane: · High-end membranes 2+ years · Standard membranes 1+ year
Adaptability · Versatile Adaptability: Handles diverse influent water qualities
· Support modular expansion for future capacity upgrades
