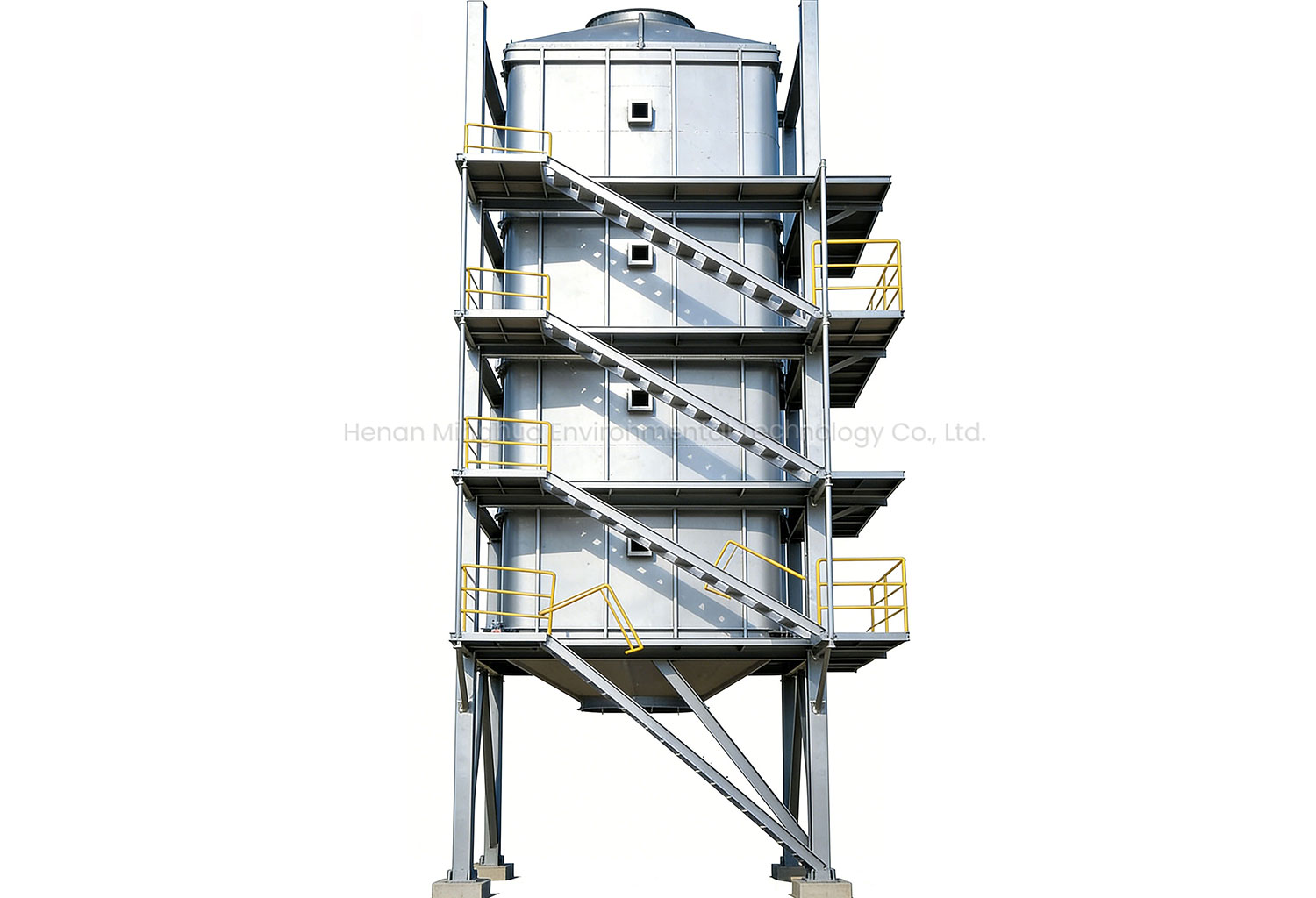

SCR Denitrification System

Treatment Target: Nitrogen Oxides (NOx).

Applications: Coal/Gas/Biomass boilers, Coking/Sintering/Metallurgical kilns, Power generation.

Efficiency: Denitrification: 85% - 95%.

Key Advantages: Automated adsorption-desorption-combustion cycle.

Project	Contents
Model / Specifications	MHSCR-X(Where X denotes Airflow Capacity in m³/h)
Airflow Capacity	10000-100000m³/h
Inlet Concentration	NOx≤1000mg/m³
Efficiency	Denitrification Efficiency：85%–95%
Applicable Exhaust Gas Types	Flue Gas
Main Material	Anti-corrosive Carbon Steel
Control System	PLC Auto / Manual
Reaction Temperature	200–420℃
Reducing Agent	Urea Solution Ammonia Water
Catalyst	Honeycomb Catalyst

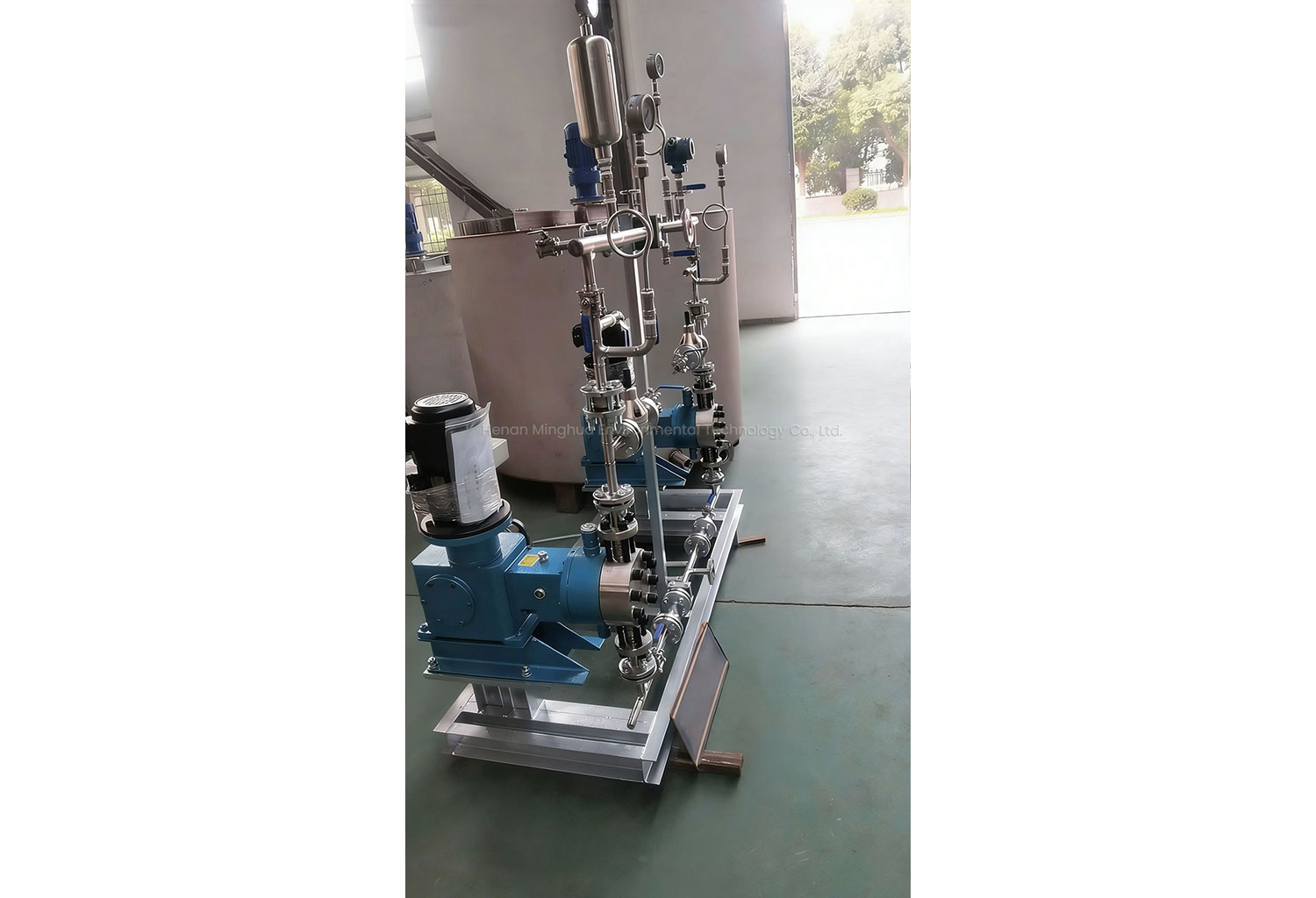

System Components	Injection Gun / Spray Lance,Evaporator,Mixing System,Soot Blowing System

Project	Contents
Functional Logic	Under the action of a catalyst, a reducing agent (Aqueous Ammonia/Urea) is injected into the flue gas to reduce NOx into N2 and H2O for denitrification compliance. The reaction is clean with no secondary pollution.
Key Advantages	High denitrification efficiency and stable compliance Mature technology and reliable operation Synergistic with desulfurization and dust removal Adapts to complex conditions with a long service life Meets ultra-low emission requirements

Project	Contents
Treatment Capacity	Customizable equipment sizes based on specific flue gas volumes
Remote Monitoring	Optional remote monitoring system integration

Project	Contents
Performance & Safety	· High Purification Efficiency: Ensures consistently stable emissions that fully comply with environmental standards
Operation & Maintenance	· Low OPEX & Energy Efficiency: Advanced energy-saving system design significantly reduces overall operational costs · Fully Automated Control: Smart PLC system enables unmanned operation, eliminating the need for dedicated on-site personnel
Customization & Durability	· Compact footprint · Premium Durability: High-grade core materials ensure an extended service life coupled with simplified, hassle-free maintenance · Flexible Customization: Tailored airflow capacities and material configurations designed to perfectly match your specific site requirements
Adaptability	Customizable Capacity, Material, etc.
