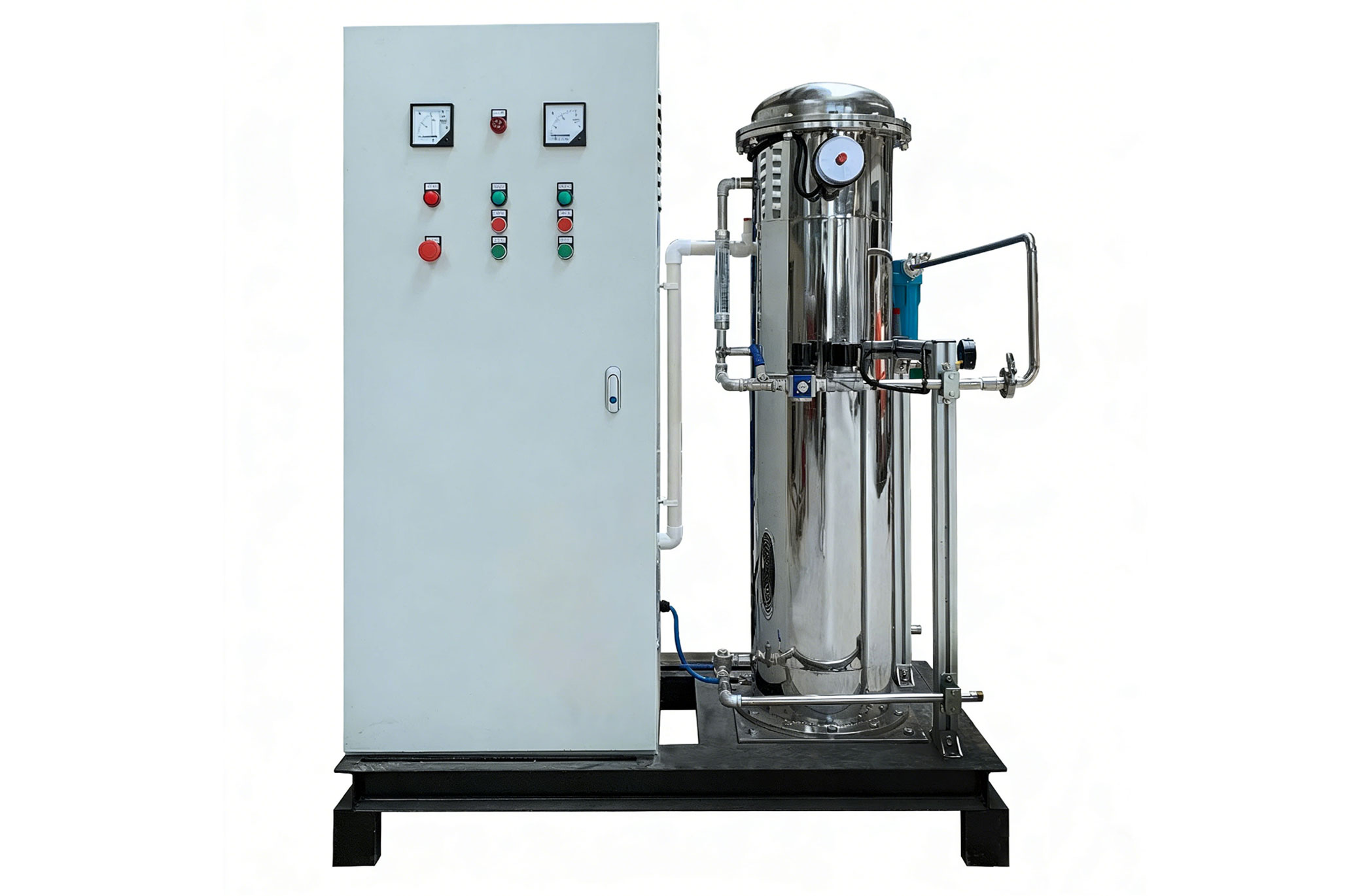

Product 1: Air-Source Small & Medium Ozone Generator Parameters

Model Ozone Output (g/h) Air Flow (Nm³/h) Cooling Water Flow (m³/h) Power Consumption (Kwh/kgO3) Dimensions (mm)
MH-D-K100 100 3.3-5.0 0.4-0.5 1.1-1.4 1200×600×1750
MH-D-K200 200 6.5-10.0 0.8-1.0 2.2-2.7 1200×600×1750
MH-D-K300 300 10.5-15.0 1.2-1.5 3.4-4.0 1200×600×1750
MH-D-K500 500 16.0-25.0 2.0-2.5 5.6-6.8 1600×600×1950
MH-D-K600 600 20.0-30.0 2.4-3.0 6.7-8.2 1800×800×1950
MH-D-K800 800 26.6-40.0 3.2-4.0 9.0-10.9 1800×800×1950
MH-D-K1000 1000 33.4-50.0 4.0-5.0 11.2-13.6 1800×800×1950

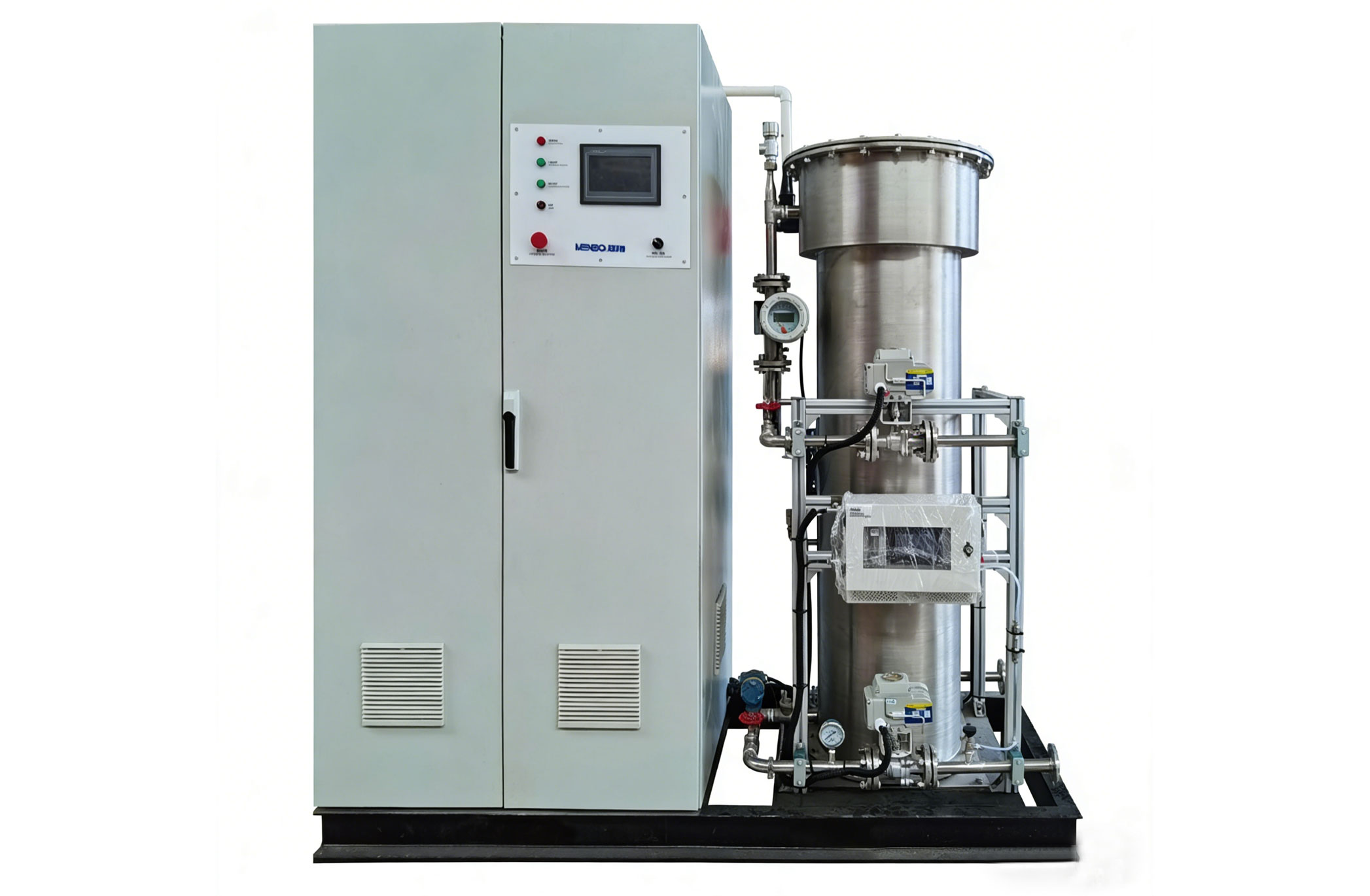

Product 2: Oxygen-Source Small & Medium Ozone Generator Parameter Table

Model Ozone Output (g/h) Air Flow (Nm³/h) Cooling Water Flow (m³/h) Power Consumption (Kwh/kgO3) Dimensions (mm)
MH-D-F100 100 0.7-1.0 0.2-0.3 0.7-0.9 1200×600×1750
MH-D-F200 200 1.4-2.0 0.2-0.4 1.4-1.8 1200×600×1750
MH-D-F300 300 2.0-3.0 0.3-0.6 2.1-2.7 1200×600×1750
MH-D-F500 500 3.4-5.0 0.5-1.0 3.5-4.5 1200×600×1750
MH-D-F600 600 4.0-6.0 0.6-1.2 4.2-5.4 1400×600×1750
MH-D-F800 800 5.4-8.0 0.8-1.6 5.6-7.2 1600×800×1950
MH-D-F1000 1000 6.7-10.0 1.0-2.0 7.0-9.0 1600×800×1950
Notes:
  1. Power consumption varies based on ozone concentration and operating conditions (cooling water and feed gas temperatures).
  2. The data in this table is for reference only.

FAQ

Q1: What are the advantages of ozone over conventional chemical dosing?

Ozone provides rapid decolorization, powerful oxidation of refractory organics, and complete disinfection without chemical residues or secondary sludge. It reduces chemical storage and sludge disposal costs, making it ideal for strict wastewater upgrading and reuse standards.

Q2: How to fix poor ozone performance or low decolorization efficiency?

Subpar performance typically stems from insufficient ozone output concentration, poor gas-liquid mixing, or inadequate contact reaction time. Quick fix: Adjust generator ozone production settings, inspect Venturi injectors or micro-bubble diffusers for uniform mixing, and extend hydraulic retention time in the contact chamber.

Q3: Do you offer water-cooled, air-cooled, and fully automated ozone models?

Yes. We provide both air-cooled units (ideal for compact, lower-capacity setups) and heavy-duty water-cooled generators (designed for high-capacity industrial applications). All systems feature intelligent PLC automation,supporting automated start/stop, concentration regulation, and scheduled cycle operations.
