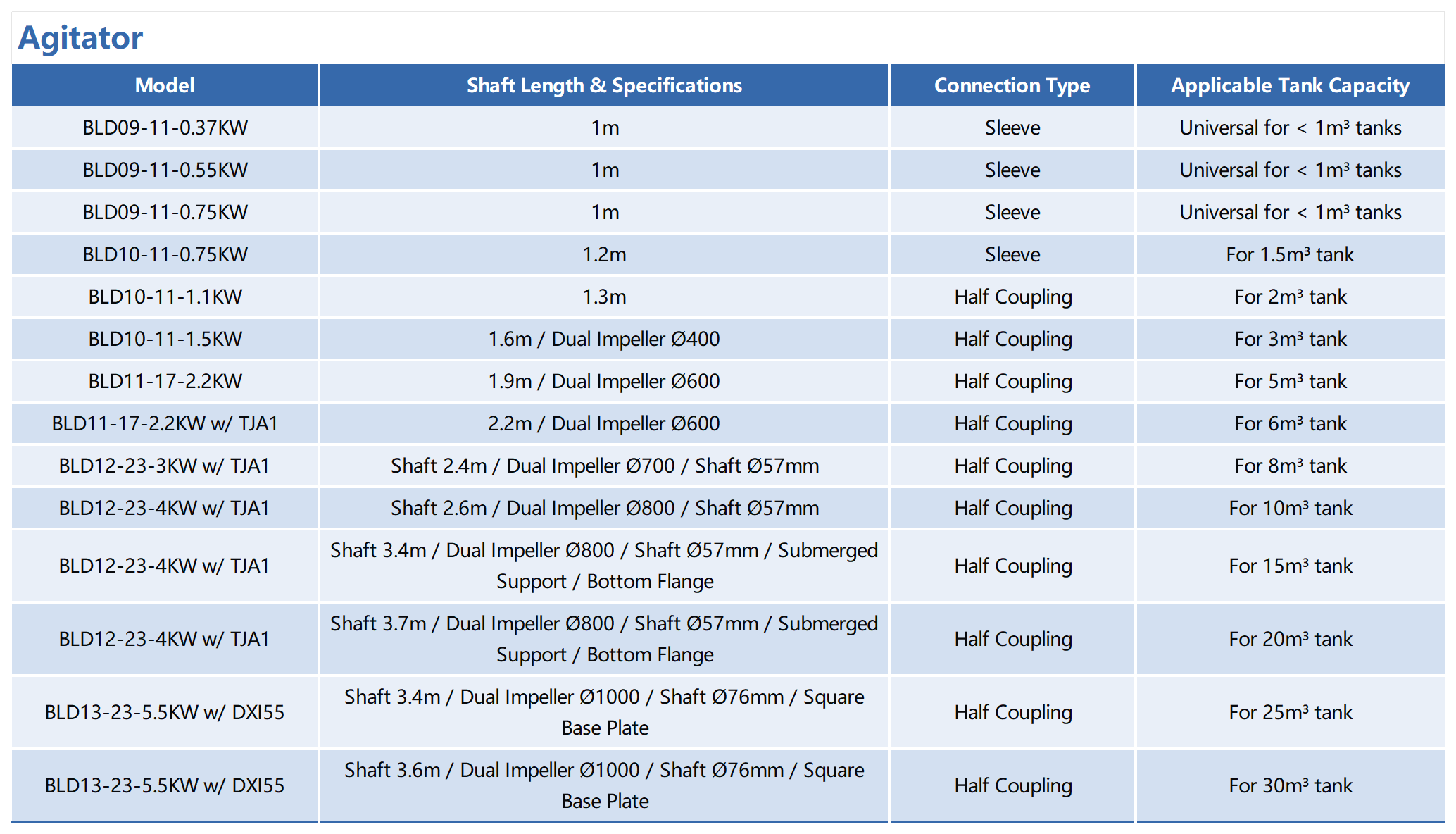

Agitator

Model Shaft Length & Specifications Connection Type Applicable Tank Capacity
BLD09-11-0.37KW 1米 Sleeve Universal for < 1m³ tanks
BLD09-11-0.55KW 1米 Sleeve Universal for < 1m³ tanks
BLD09-11-0.75KW 1米 Sleeve Universal for < 1m³ tanks
BLD10-11-0.75KW 1.2米 Sleeve For 1.5m³ tank
BLD10-11-1.1KW 1.3米 Half Coupling For 2m³ tank
BLD10-11-1.5KW 1.6m / Dual Impeller Ø400 Half Coupling For 3m³ tank
BLD11-17-2.2KW 1.9m / Dual Impeller Ø600 Half Coupling For 5m³ tank
BLD11-17-2.2KW w/ TJA1 2.2m / Dual Impeller Ø600 Half Coupling For 6m³ tank
BLD12-23-3KW w/ TJA1 Shaft 2.4m / Dual Impeller Ø700 / Shaft Ø57mm Half Coupling For 8m³ tank
BLD12-23-4KW w/ TJA1 Shaft 2.6m / Dual Impeller Ø800 / Shaft Ø57mm Half Coupling For 10m³ tank
BLD12-23-4KW w/ TJA1 Shaft 3.4m / Dual Impeller Ø800 / Shaft Ø57mm / Submerged Support / Bottom Flange Half Coupling For 15m³ tank
BLD12-23-4KW w/ TJA1 Shaft 3.7m / Dual Impeller Ø800 / Shaft Ø57mm / Submerged Support / Bottom Flange Half Coupling For 20m³ tank
BLD13-23-5.5KW w/ DXI55 Shaft 3.4m / Dual Impeller Ø1000 / Shaft Ø76mm / Square Base Plate Half Coupling For 25m³ tank
BLD13-23-5.5KW w/ DXI55 Shaft 3.6m / Dual Impeller Ø1000 / Shaft Ø76mm / Square Base Plate Half Coupling For 30m³ tank

FAQ

Q1: What causes uneven chemical dosing or inaccurate delivery rates?

Inaccurate dosing typically stems from uncalibrated metering pump settings, chemical crystallization, or piping clogs. Quick fix: Calibrate pump stroke and frequency, maintain regular tank agitation to prevent settling, and flush dosing lines.

Q2: Why is the mixer not rotating or the metering pump failing to dose?

Mixer or pump failure usually results from electrical faults, air binding in suction lines, or a ruptured pump diaphragm. Quick fix: Inspect motor wiring, vent trapped air from the dosing head, and replace damaged diaphragm seals.

Q3: Does the dosing system support fully automated, interlocked control?

Yes. Our systems feature PLC-based automation for automated dry powder feeding, continuous batch preparation, tank-level interlocked start/stop, and remote SCADA/DCS integration.
